Kleinn Air Horns KLE Pressure Switches Air Compressors - 2105

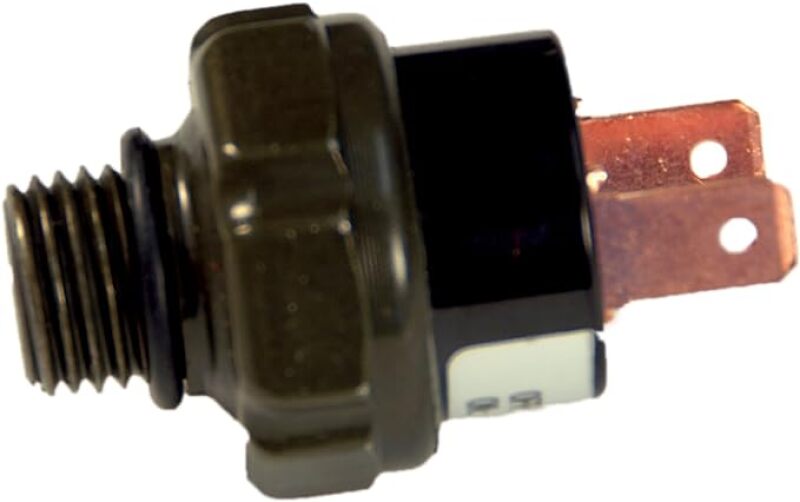

85/105 PSI Pressure Switch. Heavy duty tank-mount pressure switch 2 Male spade style terminal for wire connections. The pressure switch receives 12 volt ignition power and sends signal to a SPDT 30/40 amp Model 340 relay that turns the compressor on and off automatically. The safety relief valve on the tank will blast off when the pressure switch fails, when you hear that, kill power to the compressor so that it doesn't burn itself out, then replace the pressure switch.

Kleinn Tank Mount Pressure Switch 1/4In M NPT - 85 PSI On/ 105 PSI Off

Multi-Function Air Compressor Pressure Switch

Pressure Switch - 85 PSI on, 105 PSI off.

The use of a relay is recommended

Discontinued Pressure Switch

Note: 5% tolerance standard

85/105 PSI Press. Switch

85/105 PSI Switch

20 amp max load

Off: 105 PSI

On: 85 PSI

1/4" NPT
