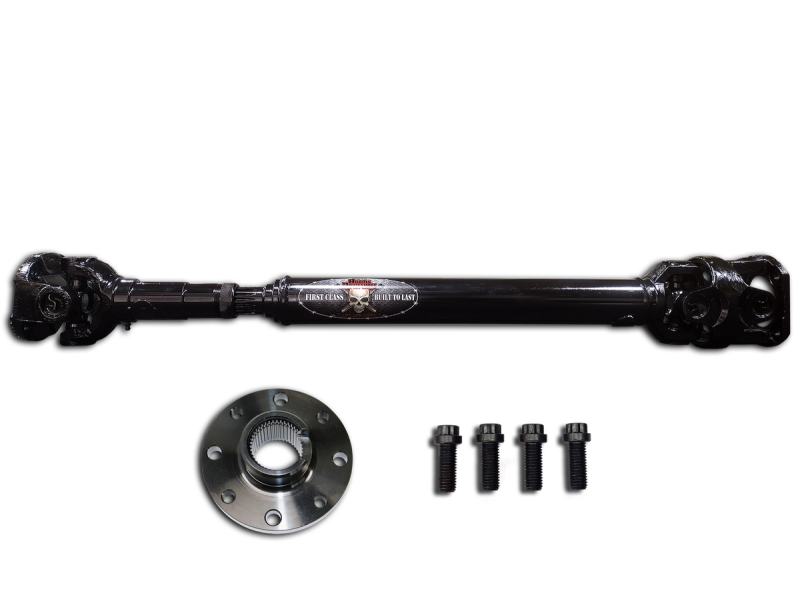

Designed to handle the increased demands of lifted diesel-powered Ram HD trucks, this extreme-duty front driveshaft is engineered specifically for 2019-2024 Ram 2500 and 3500 4WD applications. Manufactured by Adams Driveshaft using premium Spicer and Neapco components, it delivers the strength, reliability, and driveline performance required for heavy towing, off-road use, and high-articulation suspension systems. Built to accommodate suspension systems ranging from stock height up to 6 inches of front lift, this driveshaft features a rugged 2.5-inch x .120-wall DOM steel tube construction for exceptional durability under the harshest operating conditions. A long, full-spline slip and stub assembly maximizes articulation and spline engagement throughout the suspension cycle, helping maintain smooth operation and dependable performance on and off the road. Equipped with the strongest solid, non-greaseable U-joints available, this driveshaft is designed to withstand extreme torque loads while eliminating the maintenance requirements associated with traditional greaseable joints. A heavy-duty OEM-style pinion flange ensures a straightforward installation and secure fitment, while included mounting hardware provides everything needed to complete the upgrade. Backed by a Limited Lifetime Warranty, this extreme-duty front driveshaft delivers the strength and confidence required for demanding Ram HD applications where factory driveline components may fall short.
Designed to handle the increased demands of lifted diesel-powered Ram HD trucks, this extreme-duty front driveshaft is engineered specifically for 2019-2024 Ram 2500 and 3500 4WD applications with up to 6" of front lift over stock.
Extreme duty drive shaft manufactured by Adams Driveshaft using Spicer and Neapco components
APPLICATION NOTE #647: Will not fit Ram 3500 with transmission manufactured by Aisin
Vehicle specific design for 2019-2024 Ram 2500/3500 4WD with diesel engines
APPLICATION NOTE #28: Only fits models equipped with diesel engine
Long, full spline slip and stub for maximum articulation
Heavy duty OEM style pinion flange for easy installation
ICON 19-24 RAM 2500/3500 0-6in Lift Front Driveshaft
Strongest solid, non-greaseable U-joints available
Recommended Aftermarket Tires: Up to 38" diameter
Constructed from 2.5" x .120 wall DOM steel tube
19-24 RAM 2500/3500 0-6" LIFT FRONT DRIVESHAFT
Compatible with 0-6" of front lift over stock
APPLICATION NOTE #1: Only fits 4WD models
Mounting hardware included
Limited Lifetime Warranty
FRONT DRIVESHAFT
Drive Shaft
212511
