ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

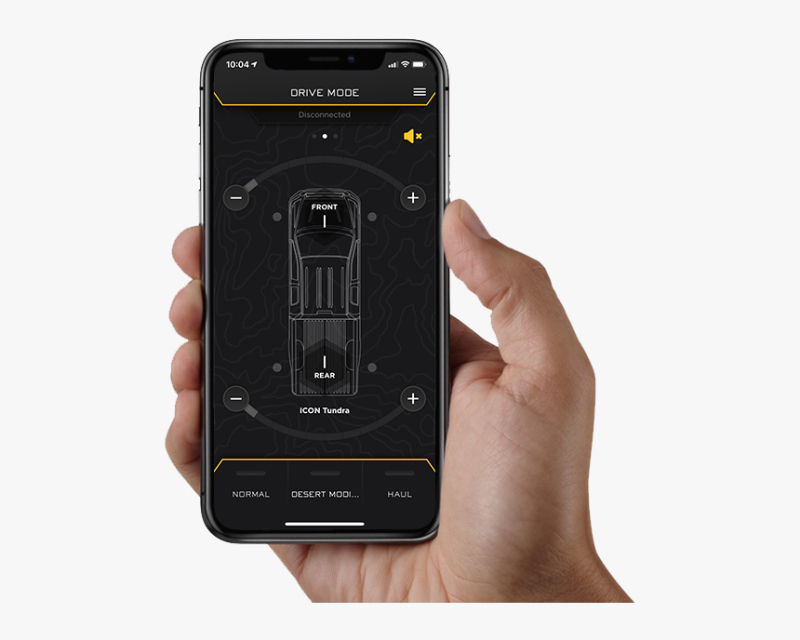

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
APPLICATION NOTE #601: Compatible with 4.5" of front lift on most Ram 2500 submodels and Ram 3500. Compatible with 2.5 of front lift on Ram 2500 Power Wagon and Ram 2500 Rebel.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shaft
6061 aircraft grade aluminum CNC machined components
ICON 2014+ Ram 2500 4.5in Front 2.5 VS RR CDEV Pair
14-26 RAM 2500 4.5" FRONT 2.5 VS RR CDEV PAIR
APPLICATION NOTE #1: Only fits 4WD models
Fully rebuildable and re-tunable
Suspension Shock Absorber Set
SHOCK ABSORBER PAIR
217803EP
