Firestone FIR Air Tanks - 9148

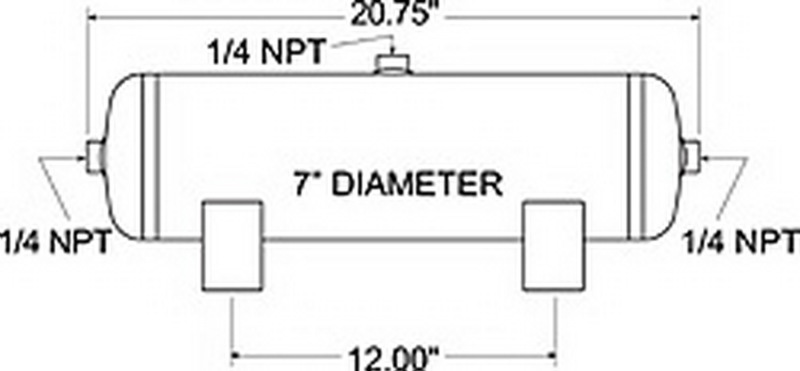

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 3-gallon capacity and (3) 1/4 in. NPT ports. Tank is enamel coated to resist corrosion, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 3 gallons of compressed air Includes 1/4 in. NPT ports (3) Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 20.75 in. long x 7 in. diameter Tank capacity: 3 gallons Inflation ports: 1/4 in. NPT PSI: Maximum of 150 2-Year limited warranty

Firestone Air Tank 3 Gallon 7in. x 17.75in. (3) 1/4in. NPT Ports 150 PSI Max - Black (WR17609148)

Air Tank; 3 Gallon; 7 in. Dia.; 17.75 in. Length; Three 1/4 in. NPT Ports; 150 PSI Max; Black;

Pressure Tested To Twice The Working Pressure

Baked Black Enamel On Inside And Outside

Manufactured To SAE J10 Specifications

Suspension Self-Leveling Unit

Air Tank 3 Gal 3 Ports

Prevents Corrosion

Air Tank

AirTank
