Firestone FIR Air Tanks - 9125

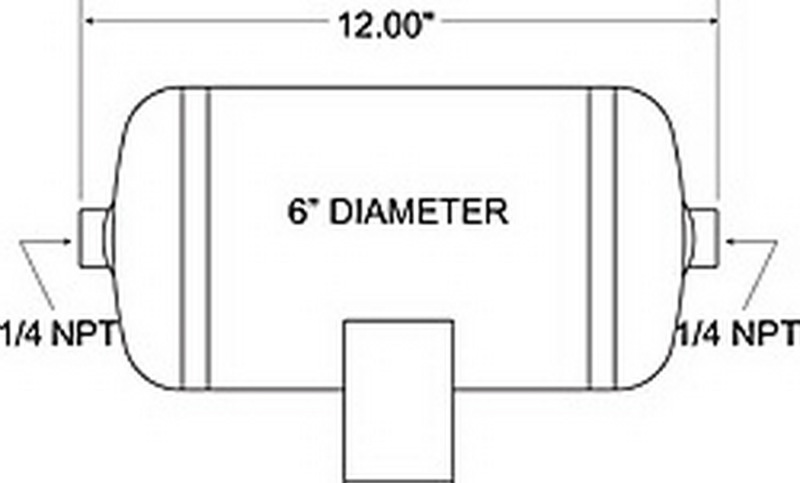

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 1-gallon capacity and (2) 1/4 in. NPT ports. Tank is enamel coated to resist corrosion, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 1 gallon of compressed air Includes 1/4 in. NPT ports (2) Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 12 in. long x 6 in. diameter Tank capacity: 1 gallon Inflation ports: 1/4 in. NPT PSI: Maximum of 150 2-Year limited warranty

Firestone Air Tank 1 Gallon 6in. x 12in. L (2) 1/4in. NPT Ports 150 PSI Max - Black (WR17609125)

Air Tank; 1 Gallon; 6 in. Dia.; 12 in. Length; Two 1/4 in. NPT Ports; 150 PSI Max; Black;

Pressure Tested To Twice The Working Pressure

Baked Black Enamel On Inside And Outside

Manufactured To SAE J10 Specifications

Suspension Self-Leveling Unit

Air Tank 1 Gal 2 Ports

Prevents Corrosion

Air Tank

AirTank
