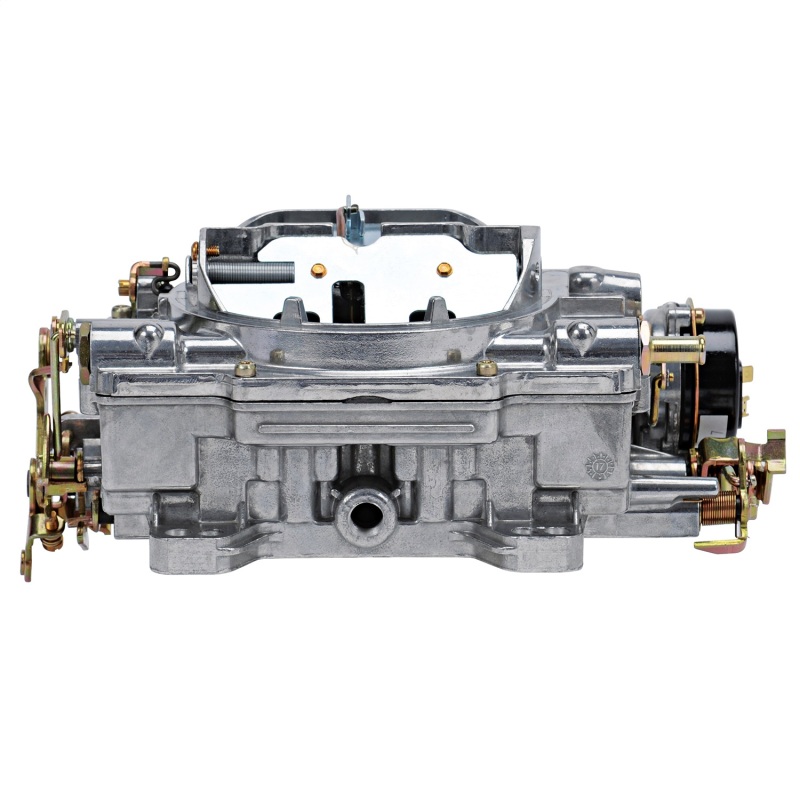

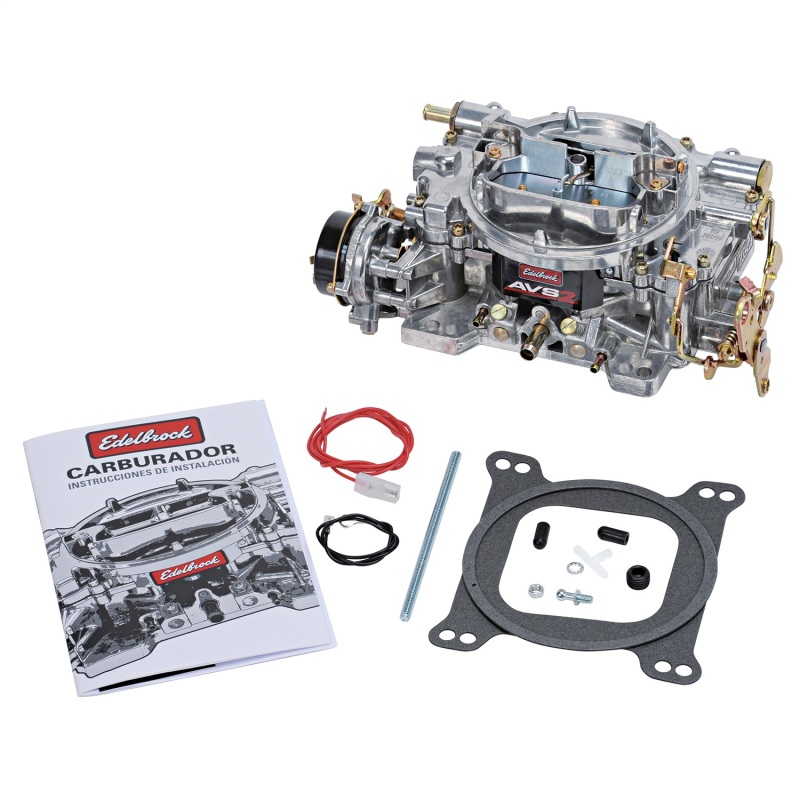

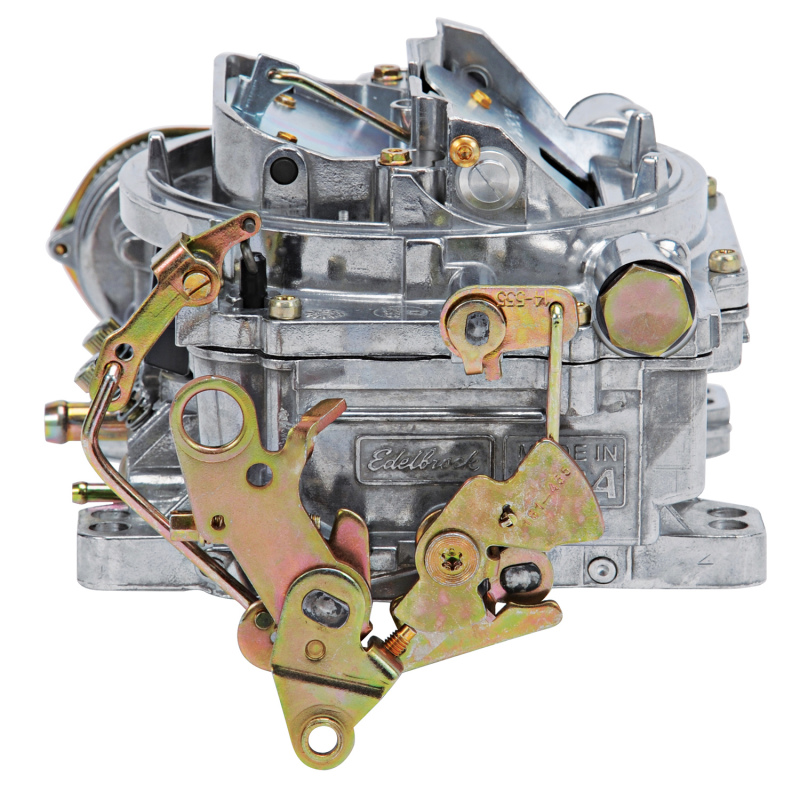

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
1902; Edelbrock; carburetor; carb; AVS2 series; AVS2; 4-barrel; square-bore; square flange; 500 cfm; 500 carb; 4150; EPS; leak free design; holds tune; manual choke; Performance; Qwik-Tune; Qwik-Tune Secondary Air Valve
The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.
Edelbrock AVS2 500 CFM Carburetor w/Electric Choke Satin Finish (Non-EGR)
AVS2 Carburetor #1901 500 CFM With Electric Choke; Satin Finish (Non-EGR)
AVS2 Carburetor #1901 500 CFM With Electric Choke, Satin Finish (Non-EGR)
AVS2 500 CFM Carburetor with Electric Choke in Satin (non-EGR)
Includes Both Timed and Full Vacuum Ports For Ignition Advance
Edelbrock AVS2 500 cfm Carburetor
AVS2 Series™ Carburetor
{ eo : 3in.}
Carburetor
CARB-AVS
CARB
