Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Autometer Prestige Series Black Diamond 5 Gauge Quad 5in Oil Pres/Fuel Level/Water Temp/Volts
Modern white LED through-the-dial lighting provides clear visibility during nighttime use

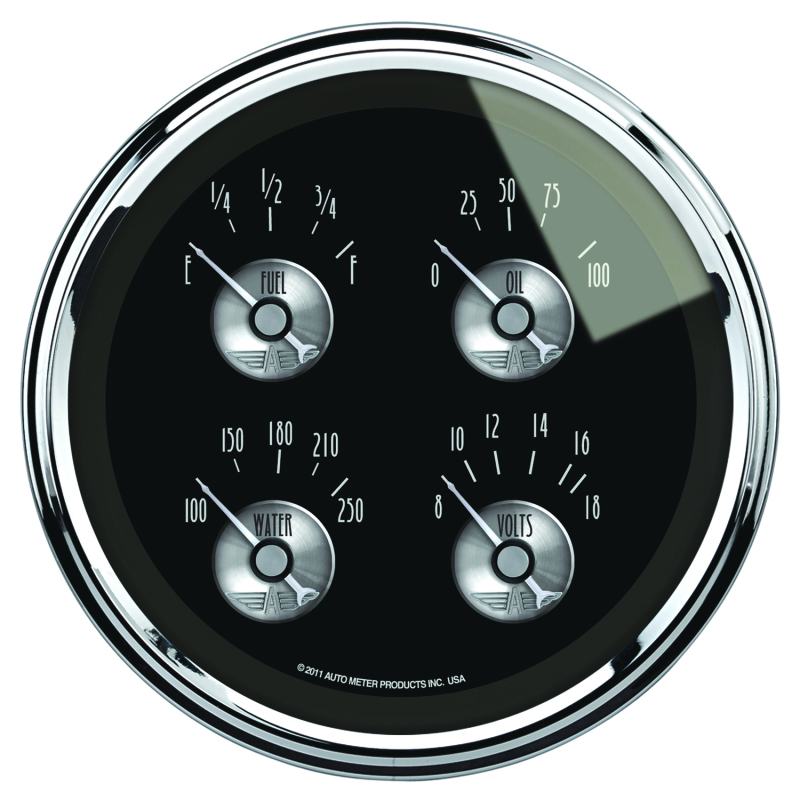

5" QUAD GAUGE, 100 PSI/100-250 F/8-18V/240-33 Ohm, PRESTIGE BLACK DIAMOND
5" QUAD GAUGE, PRESTIGE BLACK DIAMOND
Electronic Multi-Purpose Gauge
Highly polished chrome bezel
Mounting Solutions
5" QUAD GAUGE
