AutoMeter AM Accessories Gauges - 3262

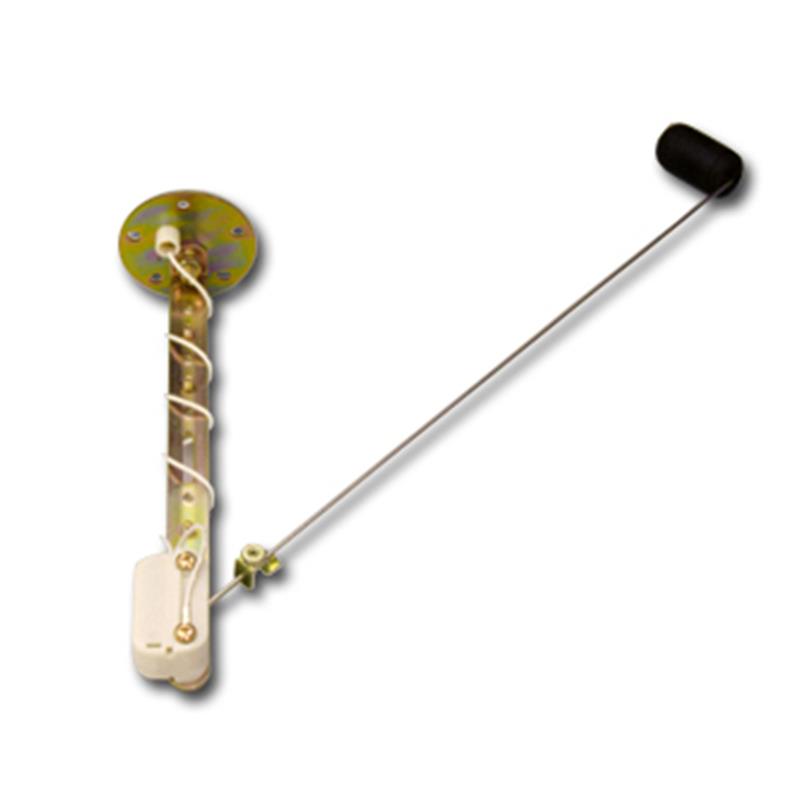

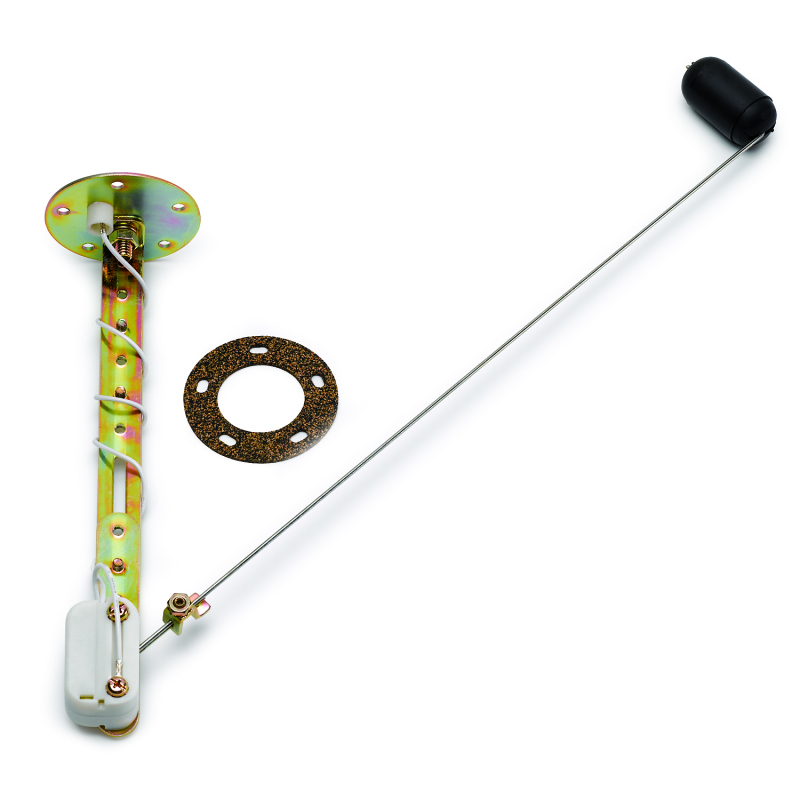

This universal fuel level sensor from AutoMeter is the perfect solution for custom made fuel tanks and installations where the original liquid level sensor is unable to be used. Engineered for top down, drop-in mounting orientation with user-adjustable geometry, this sensor can be configured for tanks with overall depths between 5 and 24 inches and provides an output of 240 ohms Empty to 33 ohms Full.

SENSOR, FUEL LEVEL, ADJUSTABLE, 240 OHM EMPTY TO 33 OHM FULL, SWING-ARM TYPE

Fits standard SAE 5 hole (2.125 in. bolt circle) top mounting flange.

For 240 Ohm Empty / 33 Ohm Fuel Gauge models.

Autometer Universal Fuel Level Sender

Adjustable for 5" - 24" deep tank.

FUEL LEVEL SENDER, 240 E 33 F

FUEL SEN 240 E 33 F

Fuel Level Sensor
